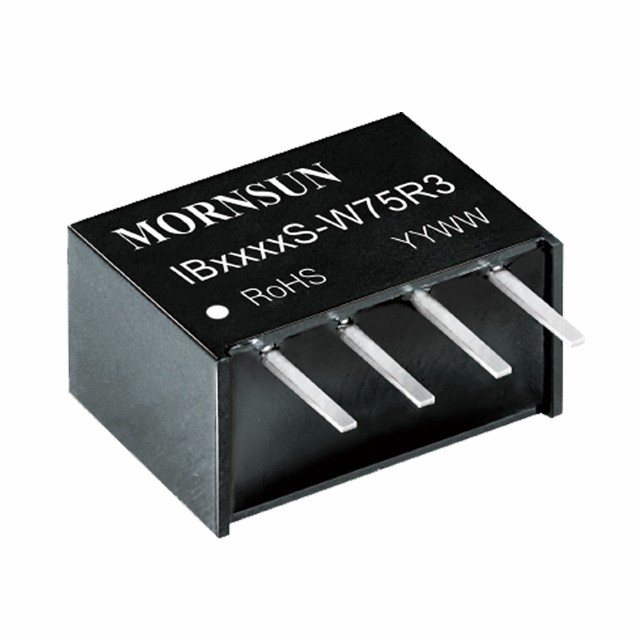

IB05_S-W75R3

Features

IB05_S-W75R3 series are especially designed for distributed power supply systems where an isolated voltage is required. They are suitable for: pre-interference isolation, ground interference elimination, pure digital circuit, voltage isolation conversion, general low frequency analog circuit, relay drive circuit, etc.

IB05_S-W75R3
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
IB0503S-W75R3 0.75 4.75~5.25 3.3 1 3000 SIP 11.60*6.00*10.16 3D MODEL CE - IB0503S-W75R3 - sample request buy on line
IB0505S-W75R3 0.75 4.75~5.25 5 1 3000 SIP 11.60*6.00*10.16 3D MODEL CE - IB0505S-W75R3 - sample request buy on line
IB0509S-W75R3 0.75 4.75~5.25 9 1 3000 SIP 11.60*6.00*10.16 3D MODEL CE - IB0509S-W75R3 - sample request buy on line
IB0512S-W75R3 0.75 4.75~5.25 12 1 3000 SIP 11.60*6.00*10.16 3D MODEL CE - IB0512S-W75R3 - sample request buy on line
IB0515S-W75R3 0.75 4.75~5.25 15 1 3000 SIP 11.60*6.00*10.16 3D MODEL CE - IB0515S-W75R3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
IB0503S-W75R3
IB0505S-W75R3
IB0509S-W75R3
IB0512S-W75R3
IB0515S-W75R3
