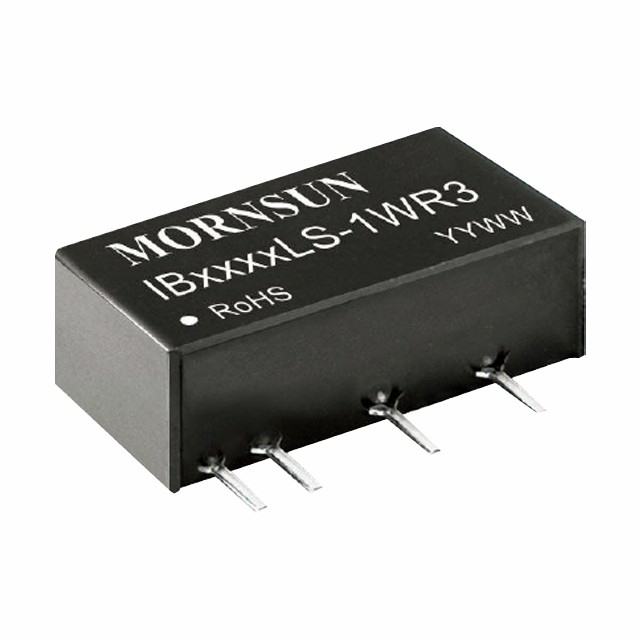

IB05_LS-1WR3

Features

IB05_LS-1WR3 series is especially designed for distributed power supply systems where an isolated voltage is required. They are suitable for occasions of : pre-interference isolation, ground interference elimination, pure digital circuit, voltage isolation conversion, general low frequency analog circuit, relay drive circuit, etc.

IB05_LS-1WR3
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
IB0505LS-1WR3 1 4.75~5.25 5 1 1500 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IB0505LS-1WR3 - sample request buy on line
IB0503LS-1WR3 1 4.75~5.25 3.3 1 1500 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE - IB0503LS-1WR3 - sample request buy on line
IB0509LS-1WR3 1 4.75~5.25 9 1 1500 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IB0509LS-1WR3 - sample request buy on line
IB0512LS-1WR3 1 4.75~5.25 12 1 1500 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IB0512LS-1WR3 - sample request buy on line
IB0515LS-1WR3 1 4.75~5.25 15 1 1500 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IB0515LS-1WR3 - sample request buy on line
IB0524LS-1WR3 1 4.75~5.25 24 1 1500 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint - IB0524LS-1WR3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
