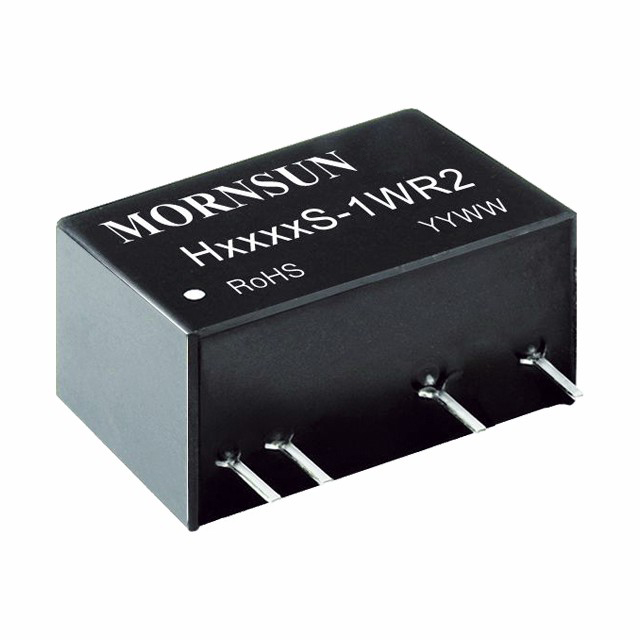

H_S-1WR2

Features

H_S-1WR2 series meets reinforced insulation requirements. They are specially designed for applications where require compact size, high isolation, low isolation capacitor and low leakage current power.

H_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
H0305S-1WR2 1 2.97~3.63 5 1 6000 SIP 19.50*9.80*12.50 3D MODEL - H0305S-1WR2 - sample request buy on line
H0503S-1WR2 1 4.5~5.5 3.3 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H0503S-1WR2 - sample request buy on line
H0505S-1WR2 1 4.5~5.5 5 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H0505S-1WR2 - sample request buy on line
H0512S-1WR2 1 4.5~5.5 12 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H0512S-1WR2 - sample request buy on line
H0515S-1WR2 1 4.5~5.5 15 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H0515S-1WR2 - sample request buy on line
H1205S-1WR2 1 10.8~13.2 5 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H1205S-1WR2 - sample request buy on line
H1212S-1WR2 1 10.8~13.2 12 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H1212S-1WR2 - sample request buy on line
H1215S-1WR2 1 10.8~13.2 15 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H1215S-1WR2 - sample request buy on line
H2405S-1WR2 1 21.6~26.4 5 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H2405S-1WR2 - sample request buy on line
H2412S-1WR2 1 21.6~26.4 12 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H2412S-1WR2 - sample request buy on line
H2415S-1WR2 1 21.6~26.4 15 1 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - H2415S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
H0305S-1WR2
H0503S-1WR2
H0505S-1WR2
H0512S-1WR2
H0515S-1WR2
H1205S-1WR2
H1212S-1WR2
H1215S-1WR2
H2405S-1WR2
H2412S-1WR2
H2415S-1WR2
