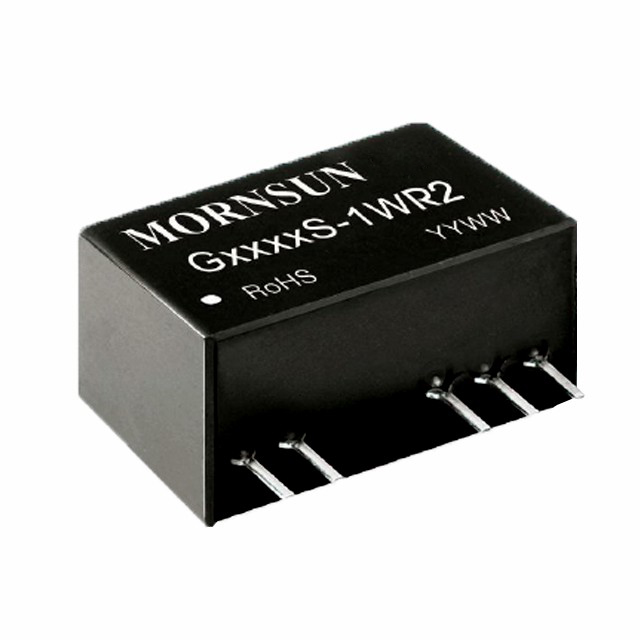

G_S-1WR2

Features

G_S-1WR2 series meet reinforced insulation requirements. They are specially designed for applications where require compact size, high isolation, low isolation capacitor and low leakage current power. They are widely used in medical, electricity, IGBT driver and so on.

G_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
G0505S-1WR2 1 4.5~5.5 ±5 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0505S-1WR2 - sample request buy on line
G0509S-1WR2 1 4.5~5.5 ±9 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0509S-1WR2 - sample request buy on line
G0512S-1WR2 1 4.5~5.5 ±12 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0512S-1WR2 - sample request buy on line
G0515S-1WR2 1 4.5~5.5 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G0515S-1WR2 - sample request buy on line
G1205S-1WR2 1 10.8~13.2 ±5 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1205S-1WR2 - sample request buy on line
G1209S-1WR2 1 10.8~13.2 ±9 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1209S-1WR2 - sample request buy on line
G1212S-1WR2 1 10.8~13.2 ±12 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1212S-1WR2 - sample request buy on line
G1215S-1WR2 1 10.8~13.2 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G1215S-1WR2 - sample request buy on line
G1515S-1WR2 1 13.5~16.5 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL UL - G1515S-1WR2 - sample request buy on line
G2405S-1WR2 1 21.6~26.4 ±5 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2405S-1WR2 - sample request buy on line
G2409S-1WR2 1 21.6~26.4 ±9 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2409S-1WR2 - sample request buy on line
G2412S-1WR2 1 21.6~26.4 ±12 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2412S-1WR2 - sample request buy on line
G2415S-1WR2 1 21.6~26.4 ±15 2 6000 SIP 19.50*9.80*12.50 3D MODEL CE UL - G2415S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
G0505S-1WR2
G0509S-1WR2
G0512S-1WR2
G0515S-1WR2
G1205S-1WR2
G1209S-1WR2
G1212S-1WR2
G1215S-1WR2
G1515S-1WR2
G2405S-1WR2
G2409S-1WR2
G2412S-1WR2
G2415S-1WR2
