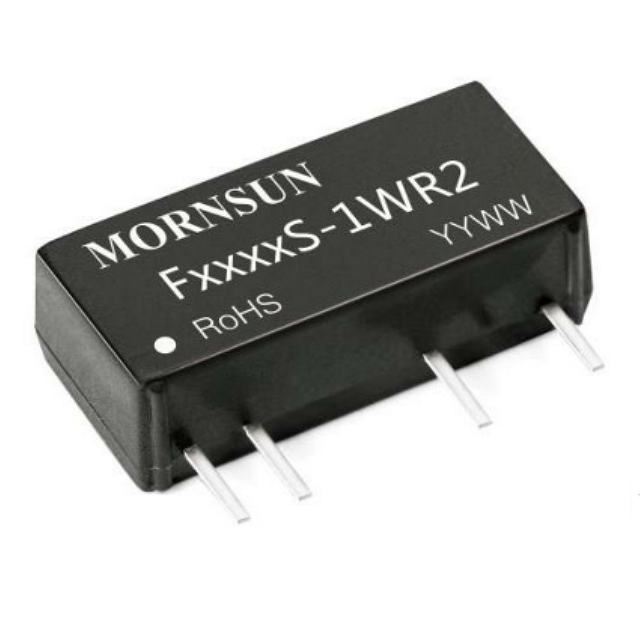

F_S-1WR2

Features

F_S-1WR2 series is specially designed for applications where an isolated voltage is required in a distributed power supply system.

F_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
F0303S-1WR2 1 2.97~3.63 3.3 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F0303S-1WR2 - sample request buy on line
F0305S-1WR2 1 2.97~3.63 5 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F0305S-1WR2 - sample request buy on line
F0324S-1WR2 1 2.97~3.63 24 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F0324S-1WR2 - sample request buy on line
F0909S-1WR2 1 8.1~9.9 9 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F0909S-1WR2 - sample request buy on line
F0915S-1WR2 1 8.1~9.9 15 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F0915S-1WR2 - sample request buy on line
F1203S-1WR2 1 10.8~13.2 3.3 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F1203S-1WR2 - sample request buy on line
F1205S-1WR2 1 10.8~13.2 5 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - F1205S-1WR2 - sample request buy on line
F1209S-1WR2 1 10.8~13.2 9 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - F1209S-1WR2 - sample request buy on line
F1212S-1WR2 1 10.8~13.2 12 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - F1212S-1WR2 - sample request buy on line
F1215S-1WR2 1 10.8~13.2 15 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - F1215S-1WR2 - sample request buy on line
F1224S-1WR2 1 10.8~13.2 24 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - F1224S-1WR2 - sample request buy on line
F1505S-1WR2 1 13.5~16.5 5 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE - F1505S-1WR2 - sample request buy on line
F1509S-1WR2 1 13.5~16.5 9 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F1509S-1WR2 - sample request buy on line
F1512S-1WR2 1 13.5~16.5 12 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F1512S-1WR2 - sample request buy on line
F1515S-1WR2 1 13.5~16.5 15 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE - F1515S-1WR2 - sample request buy on line
F2403S-1WR2 1 21.6~26.4 3.3 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F2403S-1WR2 - sample request buy on line
F1524S-1WR2 1 13.5~16.5 24 1 3000 SIP 19.5*6.0*9.3 3D MODEL - F1524S-1WR2 - sample request buy on line
F2405S-1WR2 1 21.6~26.4 5 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - F2405S-1WR2 - sample request buy on line
F2409S-1WR2 1 21.6~26.4 9 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - F2409S-1WR2 - sample request buy on line
F2412S-1WR2 1 21.6~26.4 12 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - F2412S-1WR2 - sample request buy on line
F2415S-1WR2 1 21.6~26.4 15 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - F2415S-1WR2 - sample request buy on line
F2424S-1WR2 1 21.6~26.4 24 1 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - F2424S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
