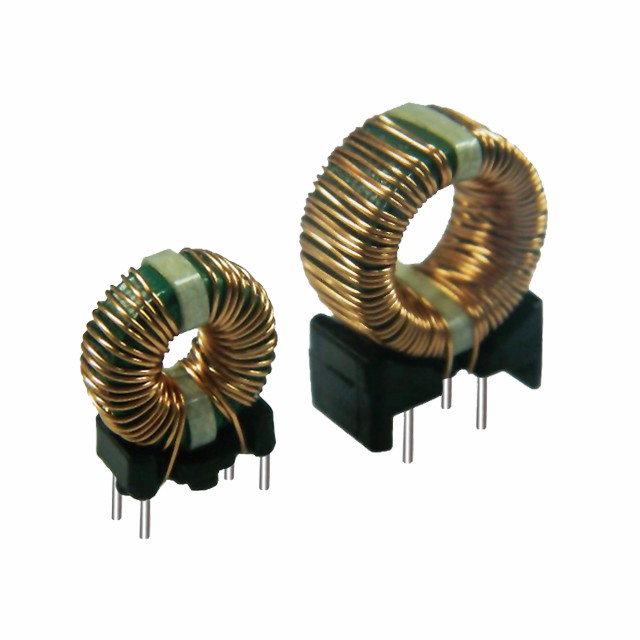

FL2D

Features

FL2D-xx-xxx series is suitable for occasions that are sensitive to noise and EMC, such as analog circuits. After installing an FL2D-xx-xxx at the input of the module, the noise at the output of the module can be greatly reduced, which can significantly improve the EMC performance.

FL2D
MORE
数据加载中

Swipe to view all →
Product No. Iout(mA) Operating Temperature Attenuation Rate DCR (mΩ) (typ) Package Dimension(mm) Supporting Power Supply Footprint & 3D Datasheet Sample Buy
FL2D-Z5-103 0~500 -25~105℃ 2K-30K 500*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-Z5-103 - sample request buy on line
FL2D-Z5-153 0~500 -25~105℃ 2K-30K 600*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-Z5-153 - sample request buy on line
FL2D-Z5-223 0~500 -25~105℃ 2K-30K 650*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-Z5-223 - sample request buy on line
FL2D-10-102 0~1000 -25~105℃ 2K-30K 50*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-10-102 - sample request buy on line
FL2D-10-222 0~1000 -25~105℃ 2K-30K 60*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-10-222 - sample request buy on line
FL2D-10-332 0~1000 -25~105℃ 2K-30K 80*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-10-332 - sample request buy on line
FL2D-10-472 0~1000 -25~105℃ 2K-30K 140*2 DIP 20.0*12.0*25.0 AC/DC,DC/DC 3D MODEL FL2D-10-472 - sample request buy on line
FL2D-10-682 0~1000 -25~105℃ 2K-30K 160*2 DIP 20.0*12.0*25.0 AC/DC,DC/DC 3D MODEL FL2D-10-682 - sample request buy on line
FL2D-10-822 0~1000 -25~105℃ 2K-30K 180*2 DIP 20.0*12.0*25.0 AC/DC,DC/DC 3D MODEL FL2D-10-822 - sample request buy on line
FL2D-30-102 0~3000 -25~105℃ 2K-30K 40*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-30-102 - sample request buy on line
FL2D-30-222 0~3000 -25~105℃ 2K-30K 42*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-30-222 - sample request buy on line
FL2D-30-472 0~3000 -25~105℃ 2K-30K 70*2 DIP 17.8*8.5*20.0 AC/DC,DC/DC 3D MODEL FL2D-30-472 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
FL2D-Z5-103
FL2D-Z5-153
FL2D-Z5-223
FL2D-10-102
FL2D-10-222
FL2D-10-332
FL2D-10-472
FL2D-10-682
FL2D-10-822
FL2D-30-102
FL2D-30-222
FL2D-30-472
