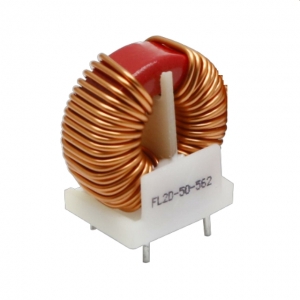

FL2D-50-xxx
Features
ItissuitableforanalogcircuitswherenoiseandEMCaresensitive,andtheEMClevelcanbesignificantlyimprovedby addingaproducttotheinputendofthepowermodule.
| Product No. | Inductance (μH)(typ) | Current (A)(max) | Operating Temperature | Attenuation Rate | DCR (mΩ) (typ) | Package | Supporting Power Supply | Footprint & 3D | Datasheet | Sample | Buy |
| FL2D-50-102 | 1000*2 | 5 | -40~125°C | - | 30*2 | DIP | AC/DC,DC/DC | ||||
| FL2D-50-332 | 3300*2 | 5 | -40~125°C | - | 38*2 | DIP | AC/DC,DC/DC | ||||
| FL2D-50-562 | 5600*2 | 5 | -40~125°C | - | 47*2 | DIP | AC/DC,DC/DC | ||||
| FL2D-50-103 | 10000*2 | 5 | -40~125°C | - | 56*2 | DIP | AC/DC,DC/DC |
* For reference only. The detailed info please refer to the datasheet.
