Features

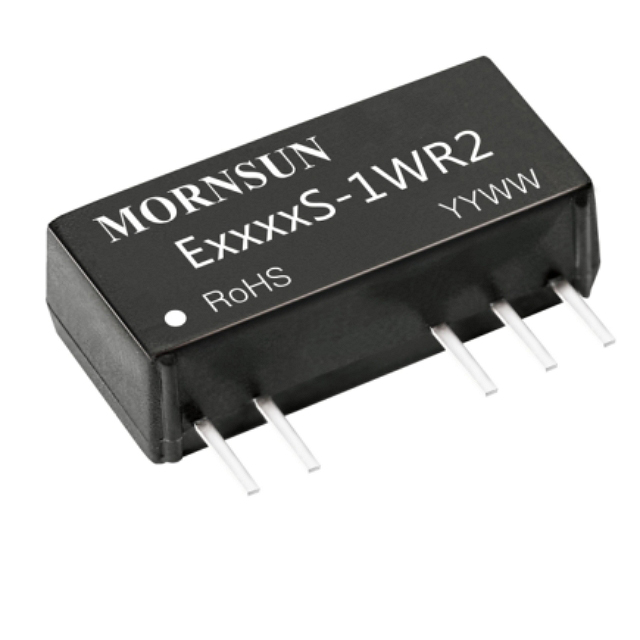

E_S-1WR2 series is specially designed for applications where an isolated voltage is required in a distributed power supply system.

E_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
E0312S-1WR2 1 2.97~3.63 ±12 2 3000 SIP 19.5*6.0*9.3 3D MODEL - E0312S-1WR2 - sample request buy on line
E0303S-1WR2 1 2.97~3.63 3.3 1 3000 SIP 19.5*6.0*9.3 3D MODEL - E0303S-1WR2 - sample request buy on line
E0305S-1WR2 1 2.97~3.63 5 1 3000 SIP 19.5*6.0*9.3 3D MODEL - E0305S-1WR2 - sample request buy on line
E0324S-1WR2 1 2.97~3.63 24 1 3000 SIP 19.5*6.0*9.3 3D MODEL - E0324S-1WR2 - sample request buy on line
E0909S-1WR2 1 8.1~9.9 ±9 2 3000 SIP 19.5*6.0*9.3 3D MODEL - E0909S-1WR2 - sample request buy on line
E1205S-1WR2 1 10.8~13.2 ±5 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - E1205S-1WR2 - sample request buy on line
E1212S-1WR2 1 10.8~13.2 ±12 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - E1212S-1WR2 - sample request buy on line
E1215S-1WR2 1 10.8~13.2 ±15 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - E1215S-1WR2 - sample request buy on line
E1224S-1WR2 1 10.8~13.2 ±24 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL - E1224S-1WR2 - sample request buy on line
E1505S-1WR2 1 13.5~16.5 ±5 2 3000 SIP 19.5*6.0*9.3 3D MODEL - E1505S-1WR2 - sample request buy on line
E1515S-1WR2 1 13.5~16.5 ±15 2 3000 SIP 19.5*6.0*9.3 3D MODEL - E1515S-1WR2 - sample request buy on line
E2405S-1WR2 1 21.6~26.4 ±5 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - E2405S-1WR2 - sample request buy on line
E2409S-1WR2 1 21.6~26.4 ±9 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - E2409S-1WR2 - sample request buy on line
E2412S-1WR2 1 21.6~26.4 ±12 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - E2412S-1WR2 - sample request buy on line
E2415S-1WR2 1 21.6~26.4 ±15 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - E2415S-1WR2 - sample request buy on line
E2424S-1WR2 1 21.6~26.4 ±24 2 3000 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - E2424S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
