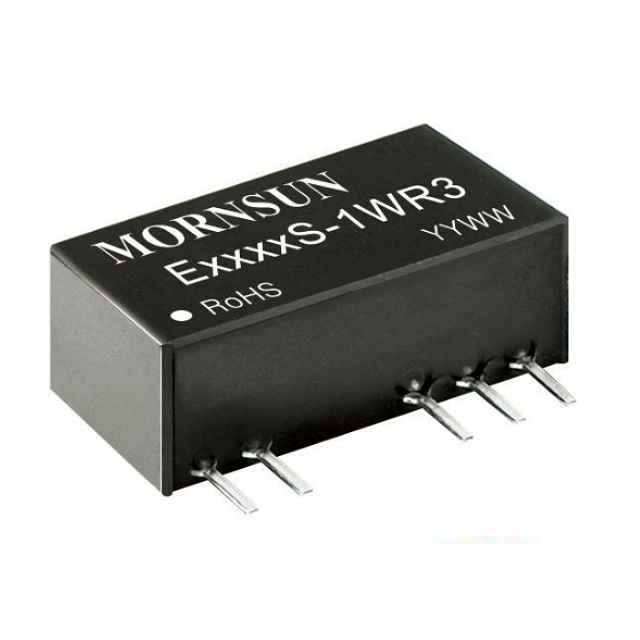

E05_S-1WR3

Features

E05_S-1WR3 series are specially designed for applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.

E05_S-1WR3
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
E0503S-1WR3 1 4.5~5.5 ±3.3 2 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE - E0503S-1WR3 - sample request buy on line
E0505S-1WR3 1 4.5~5.5 ±5 2 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - E0505S-1WR3 - sample request buy on line
E0509S-1WR3 1 4.5~5.5 ±9 2 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - E0509S-1WR3 - sample request buy on line
E0512S-1WR3 1 4.5~5.5 ±12 2 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - E0512S-1WR3 - sample request buy on line
E0515S-1WR3 1 4.5~5.5 ±15 2 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - E0515S-1WR3 - sample request buy on line
E0524S-1WR3 1 4.5~5.5 ±24 2 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - E0524S-1WR3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
E0503S-1WR3
E0505S-1WR3
E0509S-1WR3
E0512S-1WR3
E0515S-1WR3
E0524S-1WR3
