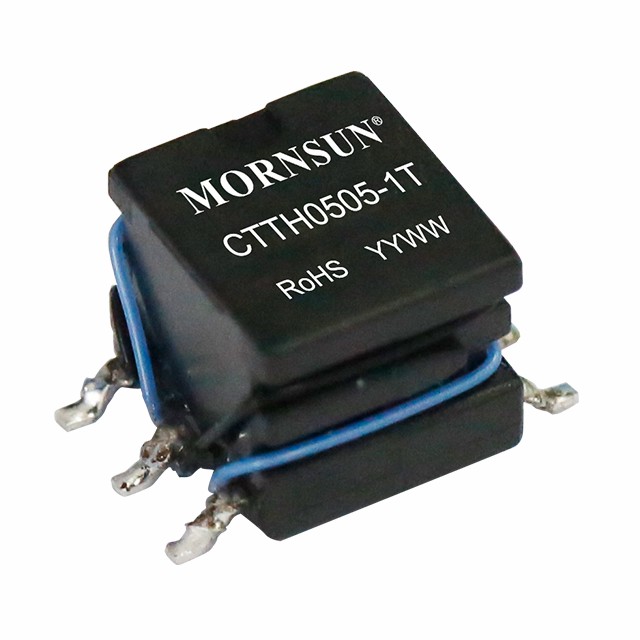

CTTH0505-1T
Features
CTTH0505-1T transformer can be used with MORNSUN SCM1201 fixed input push-pull controller IC to supply power for the secondary side of an isolated data interface such as RS232, RS485 or CAN bus.CTTH0505-1T transformer has an isolation voltage of up to 6000VDC, and all components meet AEC-Q200 standard. From design, verification to production processes, this CTTH0505-1T transformer is completely in accordance with IATF16949 system requirements.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Skeleton structure | Topology | Design Reference | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| CTTH0505-1T | 1 | 4.5~5.5 | 5 | 1 | 6000 | SMD | E41429 | Push-Pull | - | - | - |
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
