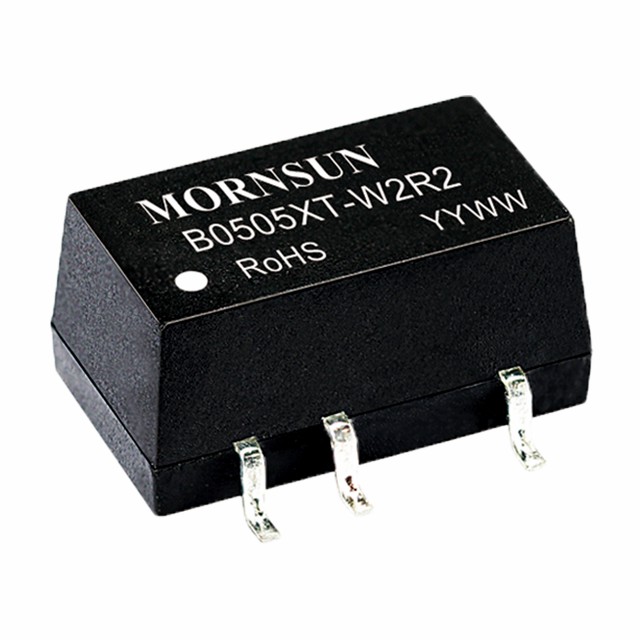

B_XT-W2R2
Features
B_XT-W2R2 series is specially designed for applications where an isolated voltage is required in a distributed power supply system.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| B0303XT-W2R2 | 0.25 | 2.97~3.63 | 3.3 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
- |
-
|
|
|
| B0305XT-W2R2 | 0.25 | 2.97~3.63 | 5 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
- |
-
|
|
|
| B0312XT-W2R2 | 0.25 | 2.97~3.63 | 12 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
- |
-
|
|
|
| B1203XT-W2R2 | 0.25 | 10.8~13.2 | 3.3 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
- |
-
|
|
|
| B1205XT-W2R2 | 0.25 | 10.8~13.2 | 5 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
-
|
-
|
|
|
| B1209XT-W2R2 | 0.25 | 10.8~13.2 | 9 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
-
|
-
|
|
|
| B1212XT-W2R2 | 0.25 | 10.8~13.2 | 12 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
-
|
-
|
|
|
| B2405XT-W2R2 | 0.25 | 21.6~26.4 | 5 | 1 | 1500 | SMD | 12.70*11.20*7.25 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
