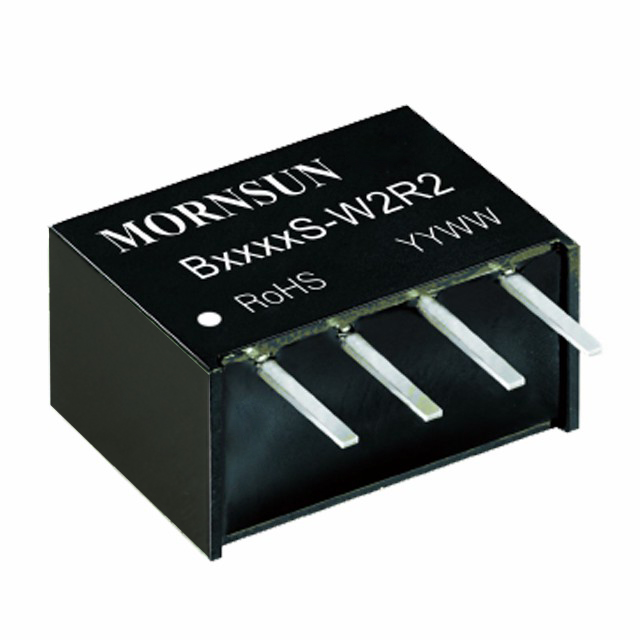

B_S-W2R2
Features
B_S-W2R2 series are specially designed for applications where an isolated voltage is required in a distributed power supply system.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| B0303S-W2R2 | 0.25 | 2.97~3.63 | 3.3 | 1 | 1500 | SIP | 11.60*6.00*10.16 |
|
-
|
-
|
|
|
| B0305S-W2R2 | 0.25 | 2.97~3.63 | 5 | 1 | 1500 | SIP | 11.60*6.00*10.16 |
|
-
|
-
|
|
|
| B1205S-W2R2 | 0.25 | 10.8~13.2 | 5 | 1 | 1500 | SIP | 11.60*6.00*10.16 |
|
-
|
-
|
|
|
| B1505S-W2R2 | 0.25 | 13.5~16.5 | 5 | 1 | 1500 | SIP | 11.60*6.00*10.16 |
|
-
|
-
|
|
|
| B2405S-W2R2 | 0.25 | 21.6~26.4 | 5 | 1 | 1500 | SIP | 11.60*6.00*10.16 |
|
-
|
-
|
|
|
| B2409S-W2R2 | 0.25 | 21.6~26.4 | 9 | 1 | 1500 | SIP | 11.60*6.00*10.16 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
