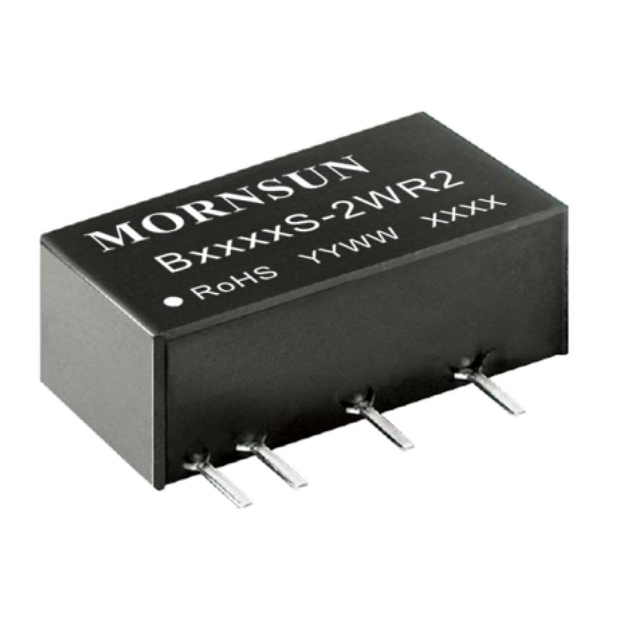

B_S-2WR2

Features

B_S-2WR2 series is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.

B_S-2WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
B0503S-2WR2 2 4.75~5.25 3.3 1 1500 SIP 19.65*7.05*10.16 3D MODEL - B0503S-2WR2 - sample request buy on line
B0505S-2WR2 2 4.5~5.5 5 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B0505S-2WR2 - sample request buy on line
B0509S-2WR2 2 4.75~5.25 9 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B0509S-2WR2 - sample request buy on line
B0512S-2WR2 2 4.5~5.5 12 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B0512S-2WR2 - sample request buy on line
B0515S-2WR2 2 4.5~5.5 15 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B0515S-2WR2 - sample request buy on line
B0524S-2WR2 2 4.5~5.5 24 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B0524S-2WR2 - sample request buy on line
B0905S-2WR2 2 8.1~9.9 5 1 1500 SIP 19.65*7.05*10.16 3D MODEL - B0905S-2WR2 - sample request buy on line
B0912S-2WR2 2 8.1~9.9 12 1 1500 SIP 19.65*7.05*10.16 3D MODEL - B0912S-2WR2 - sample request buy on line
B1203S-2WR2 2 10.8~13.2 3.3 1 1500 SIP 19.65*7.05*10.16 3D MODEL - B1203S-2WR2 - sample request buy on line
B1205S-2WR2 2 10.8~13.2 5 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B1205S-2WR2 - sample request buy on line
B1209S-2WR2 2 10.8~13.2 9 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B1209S-2WR2 - sample request buy on line
B1212S-2WR2 2 10.8~13.2 12 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B1212S-2WR2 - sample request buy on line
B1215S-2WR2 2 10.8~13.2 15 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B1215S-2WR2 - sample request buy on line
B1224S-2WR2 2 10.8~13.2 24 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B1224S-2WR2 - sample request buy on line
B1505S-2WR2 2 13.5~16.5 5 1 1500 SIP 19.65*7.05*10.16 3D MODEL - B1505S-2WR2 - sample request buy on line
B1515S-2WR2 2 13.5~16.5 15 1 1500 SIP 19.65*7.05*10.16 3D MODEL - B1515S-2WR2 - sample request buy on line
B2403S-2WR2 2 21.6~26.4 3.3 1 1500 SIP 19.65*7.05*10.16 3D MODEL - B2403S-2WR2 - sample request buy on line
B2405S-2WR2 2 21.6~26.4 5 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B2405S-2WR2 - sample request buy on line
B2409S-2WR2 2 21.6~26.4 9 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B2409S-2WR2 - sample request buy on line
B2412S-2WR2 2 21.6~26.4 12 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B2412S-2WR2 - sample request buy on line
B2415S-2WR2 2 21.6~26.4 15 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B2415S-2WR2 - sample request buy on line
B2424S-2WR2 2 21.6~26.4 24 1 1500 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - B2424S-2WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
