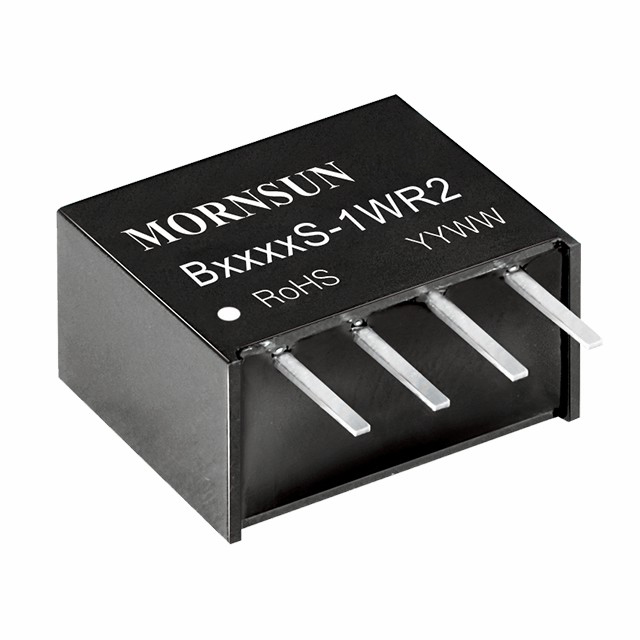

B_S-1WR2

Features

B_S-1WR2 series is designed for use in distributed power supply systems and especially suitable in applications such as puredigital circuits, low frequency analog circuits, relay-driven circuits and data switching circuit.

B_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
B0303S-1WR2 1 2.97~3.63 3.3 1 1500 SIP 11.60*6.00*10.10 3D MODEL - B0303S-1WR2 - sample request buy on line
B0305S-1WR2 1 2.97~3.63 5 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B0305S-1WR2 - sample request buy on line
B0312S-1WR2 1 2.97~3.63 12 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B0312S-1WR2 - sample request buy on line
B1203S-1WR2 1 10.8~13.2 3.3 1 1500 SIP 11.60*6.00*10.10 3D MODEL - B1203S-1WR2 - sample request buy on line
B1205S-1WR2 1 10.8~13.2 5 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B1205S-1WR2 - sample request buy on line
B1209S-1WR2 1 10.8~13.2 9 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B1209S-1WR2 - sample request buy on line
B1212S-1WR2 1 10.8~13.2 12 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B1212S-1WR2 - sample request buy on line
B1215S-1WR2 1 10.8~13.2 15 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B1215S-1WR2 - sample request buy on line
B1224S-1WR2 1 10.8~13.2 24 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B1224S-1WR2 - sample request buy on line
B1505S-1WR2 1 13.5~16.5 5 1 1500 SIP 11.60*6.00*10.10 3D MODEL - B1505S-1WR2 - sample request buy on line
B1512S-1WR2 1 13.5~16.5 12 1 1500 SIP 11.60*6.00*10.10 3D MODEL - B1512S-1WR2 - sample request buy on line
B1515S-1WR2 1 13.5~16.5 15 1 1500 SIP 11.60*6.00*10.10 3D MODEL - B1515S-1WR2 - sample request buy on line
B2403S-1WR2 1 21.6~26.4 3.3 1 1500 SIP 11.60*6.00*10.10 3D MODEL - B2403S-1WR2 - sample request buy on line
B2405S-1WR2 1 21.6~26.4 5 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B2405S-1WR2 - sample request buy on line
B2409S-1WR2 1 21.6~26.4 9 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B2409S-1WR2 - sample request buy on line
B2412S-1WR2 1 21.6~26.4 12 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B2412S-1WR2 - sample request buy on line
B2415S-1WR2 1 21.6~26.4 15 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B2415S-1WR2 - sample request buy on line
B2424S-1WR2 1 21.6~26.4 24 1 1500 SIP 11.60*6.00*10.10 3D MODEL CE UL CB - B2424S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
B0303S-1WR2
B0305S-1WR2
B0312S-1WR2
B1203S-1WR2
B1205S-1WR2
B1209S-1WR2
B1212S-1WR2
B1215S-1WR2
B1224S-1WR2
B1505S-1WR2
B1512S-1WR2
B1515S-1WR2
B2403S-1WR2
B2405S-1WR2
B2409S-1WR2
B2412S-1WR2
B2415S-1WR2
B2424S-1WR2
