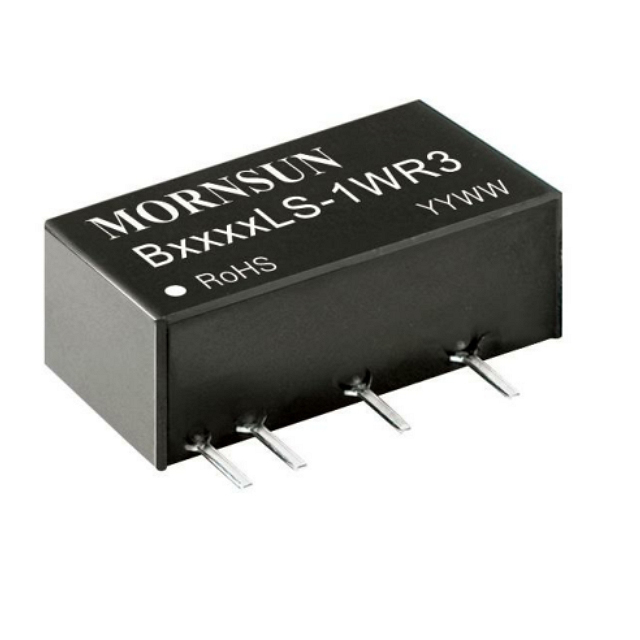

B05_LS-1WR3
Features
B05_LS-1WR3 series is specially designed for applications where an isolated (two isolated) voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | Footprint & 3D | Certification | Datasheet | Sample | Buy |
| B0503LS-1WR3 | 1 | 4.5~5.5 | 3.3 | 1 | 1500 | SIP | 19.65*6.00*10.16 |
|
-
|
-
|
|
|
| B0505LS-1WR3 | 1 | 4.5~5.5 | 5 | 1 | 1500 | SIP | 19.65*6.00*10.16 |
|
-
|
-
|
|
|
| B0509LS-1WR3 | 1 | 4.5~5.5 | 9 | 1 | 1500 | SIP | 19.65*6.00*10.16 |
|
-
|
-
|
|
|
| B0512LS-1WR3 | 1 | 4.5~5.5 | 12 | 1 | 1500 | SIP | 19.65*6.00*10.16 |
|
-
|
-
|
|
|
| B0515LS-1WR3 | 1 | 4.5~5.5 | 15 | 1 | 1500 | SIP | 19.65*6.00*10.16 |
|
-
|
-
|
|
|
| B0524LS-1WR3 | 1 | 4.5~5.5 | 24 | 1 | 1500 | SIP | 19.65*6.00*10.16 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
