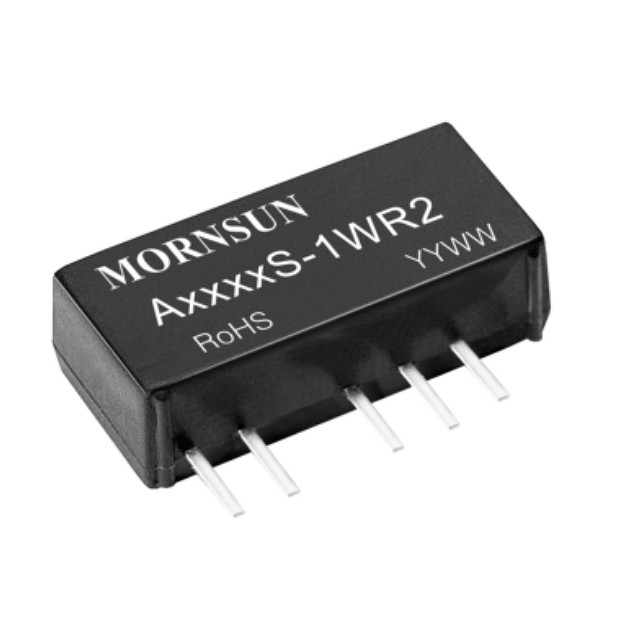

A_S-1WR2

Features

A_S-1WR2 series is designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.

A_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
A0305S-1WR2 1 3.3 ±5 2 1500 SIP 19.50*6.00*9.30 - - A0305S-1WR2 - sample request buy on line
A0312S-1WR2 1 3.3 ±12 2 1500 SIP 19.50*6.00*9.30 - - A0312S-1WR2 - sample request buy on line
A0315S-1WR2 1 2.97~3.63 ±15 2 1500 SIP 19.5*6.0*9.3 3D MODEL - A0315S-1WR2 - sample request buy on line
A0909S-1WR2 1 8.1~9.9 ±9 2 1500 SIP 19.5*6.0*9.3 3D MODEL - A0909S-1WR2 - sample request buy on line
A0915S-1WR2 1 8.1~9.9 ±15 2 1500 SIP 19.5*6.0*9.3 3D MODEL - A0915S-1WR2 - sample request buy on line
A1203S-1WR2 1 10.8~13.2 ±3.3 2 1500 SIP 19.5*6.0*9.3 3D MODEL - A1203S-1WR2 - sample request buy on line
A1205S-1WR2 1 10.8~13.2 ±5 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL - A1205S-1WR2 - sample request buy on line
A1209S-1WR2 1 10.8~13.2 ±9 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL - A1209S-1WR2 - sample request buy on line
A1212S-1WR2 1 10.8~13.2 ±12 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL - A1212S-1WR2 - sample request buy on line
A1215S-1WR2 1 10.8~13.2 ±15 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL - A1215S-1WR2 - sample request buy on line
A1224S-1WR2 1 10.8~13.2 ±24 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL - A1224S-1WR2 - sample request buy on line
A1505S-1WR2 1 13.5~16.5 ±5 2 1500 SIP 19.5*6.0*9.3 3D MODEL - A1505S-1WR2 - sample request buy on line
A1512S-1WR2 1 13.5~16.5 ±12 2 1500 SIP 19.5*6.0*9.3 3D MODEL - A1512S-1WR2 - sample request buy on line
A1515S-1WR2 1 13.5~16.5 ±15 2 1500 SIP 19.5*6.0*9.3 3D MODEL UL - A1515S-1WR2 - sample request buy on line
A2405S-1WR2 1 21.6~26.4 ±5 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - A2405S-1WR2 - sample request buy on line
A2409S-1WR2 1 21.6~26.4 ±9 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - A2409S-1WR2 - sample request buy on line
A2412S-1WR2 1 21.6~26.4 ±12 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - A2412S-1WR2 - sample request buy on line
A2415S-1WR2 1 21.6~26.4 ±15 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - A2415S-1WR2 - sample request buy on line
A2424S-1WR2 1 21.6~26.4 ±24 2 1500 SIP 19.5*6.0*9.3 3D MODEL CE UL CB - A2424S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
