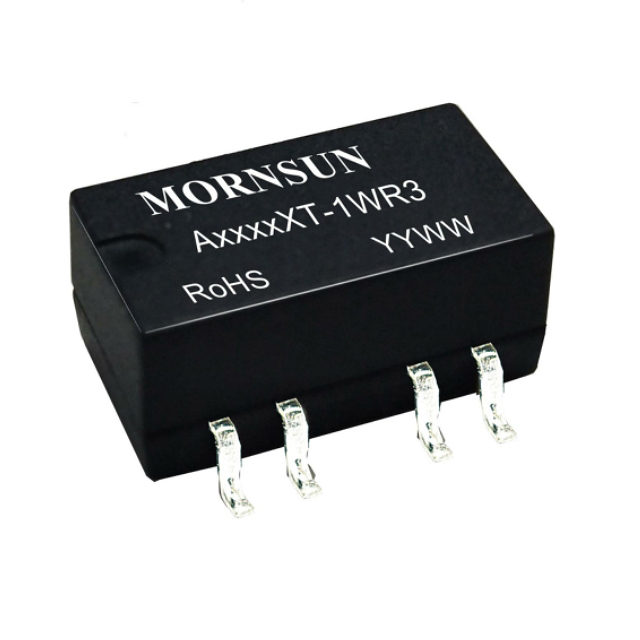

A05_XT-1WR3
Features
A05_XT-1WR3 series are specially designed for applications where two isolated voltage is required in a distributed power supply system. They are suitable for pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation(VDC) | Package | Dimension(mm) | Footprint & 3D | Certification | Datasheet | Sample | Buy |
| A0505XT-1WR3 | 1 | 4.5~5.5 | ±5 | 2 | 1500 | SMD | 15.24*11.40*7.25 |
|
-
|
-
|
|
|
| A0509XT-1WR3 | 1 | 4.5~5.5 | ±9 | 2 | 1500 | SMD | 15.24*11.40*7.25 |
|
-
|
-
|
|
|
| A0512XT-1WR3 | 1 | 4.5~5.5 | ±12 | 2 | 1500 | SMD | 15.24*11.40*7.25 |
|
-
|
-
|
|
|
| A0515XT-1WR3 | 1 | 4.5~5.5 | ±15 | 2 | 1500 | SMD | 15.24*11.40*7.25 |
|
-
|
-
|
|
|
| A0524XT-1WR3 | 1 | 4.5~5.5 | ±24 | 2 | 1500 | SMD | 15.24*11.40*7.25 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| A0505XT-1WR3 |
| A0509XT-1WR3 |
| A0512XT-1WR3 |
| A0515XT-1WR3 |
| A0524XT-1WR3 |
